✔️Compatibility

Intel Socket: LGA4677

✔️Radiator specifications:
Pump Dimensions: L118.5 mm x W78 mm x H41.5 mm
Radiator Dimensions: L397 mm x W120 mm x H27 mm
Pump Rated Speed: 3000 RPM10% (MAX)
Pump Rated Voltage: 12V DC
Connector: 4 PIN PWM
Radiator: Aluminum
Warranty: 3 Years

✔️Fan Specifications:
Model: TL-H12-X28-R7-EX
Dimension: L120 mm x W120 mm x H28 mm
Rated Speed: 3000 RPM10% (MAX)
Noise Level: 39.8 dBA (MAX)
Air Flow: 128.2 CFM (MAX)
Air Pressure: 4.2 mm H2O (MAX)
Connector: 4 PIN PWM
Ampere: 0.5 A
Bearing Type: Dual Ball Bearing
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

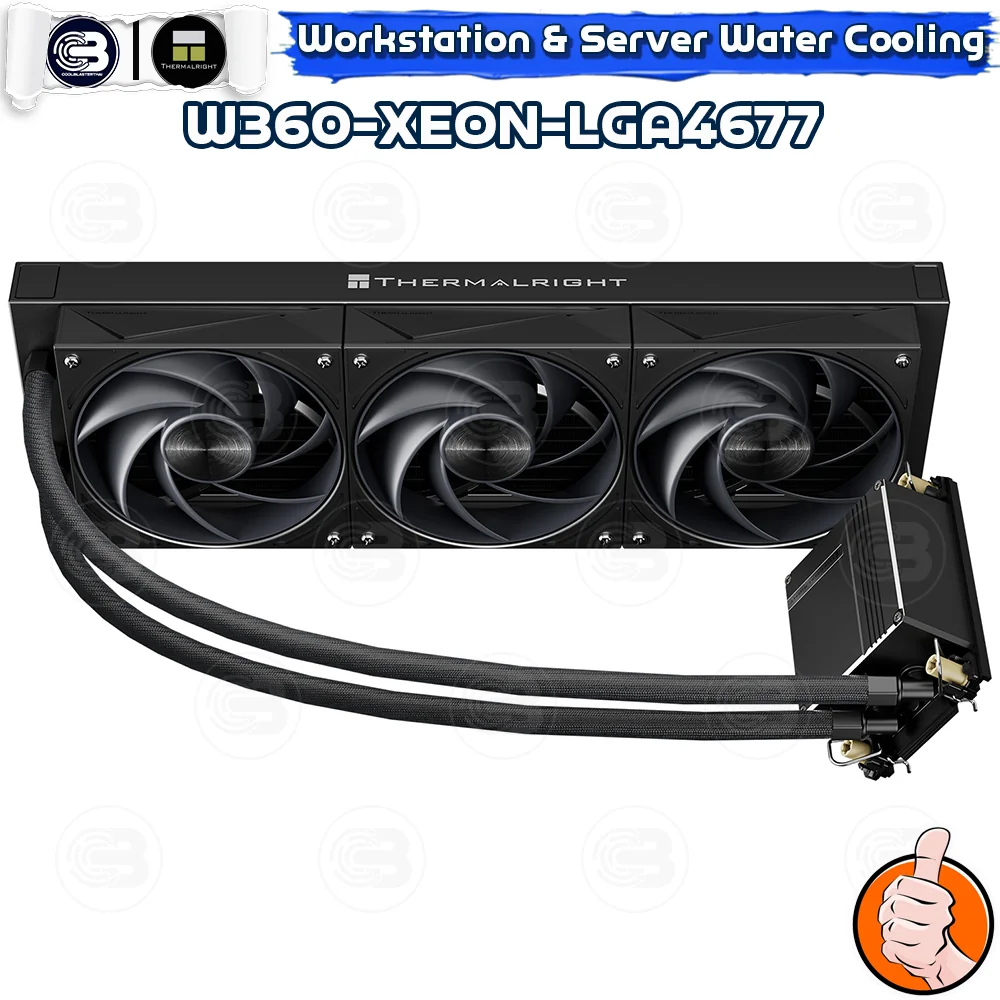

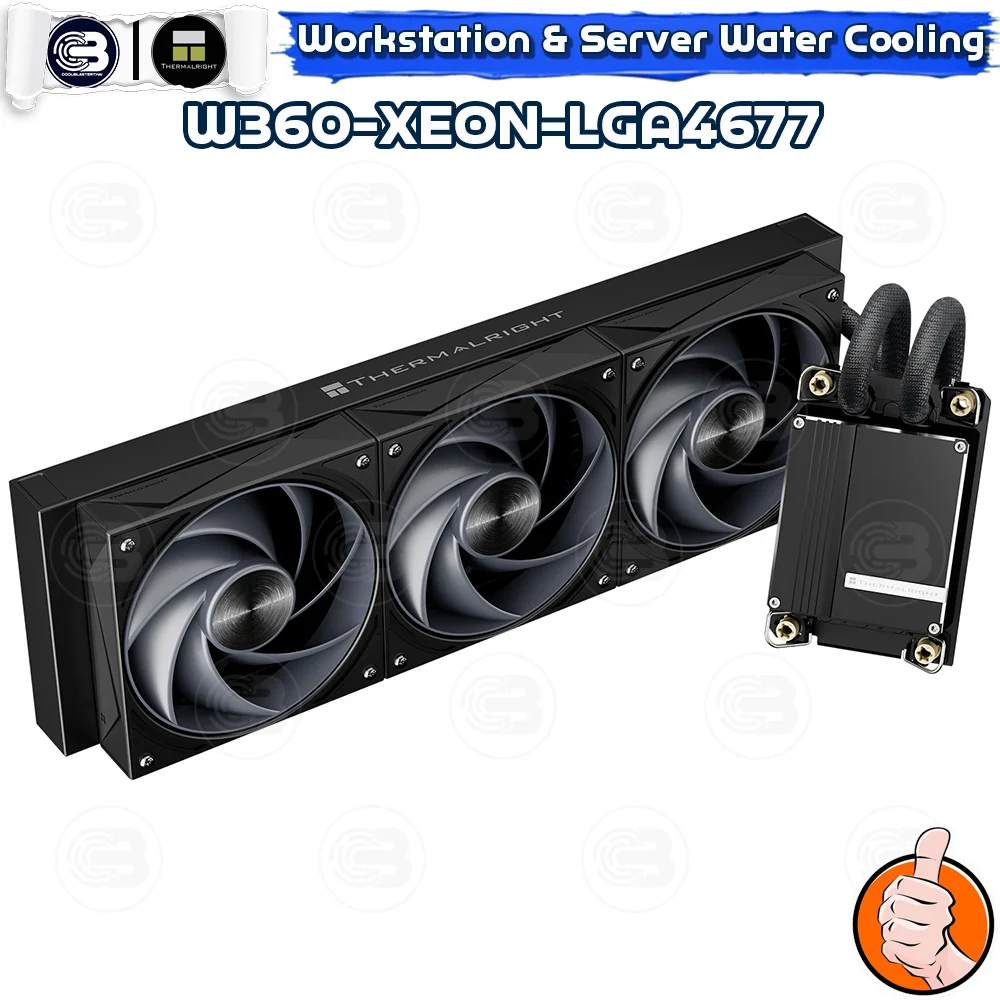

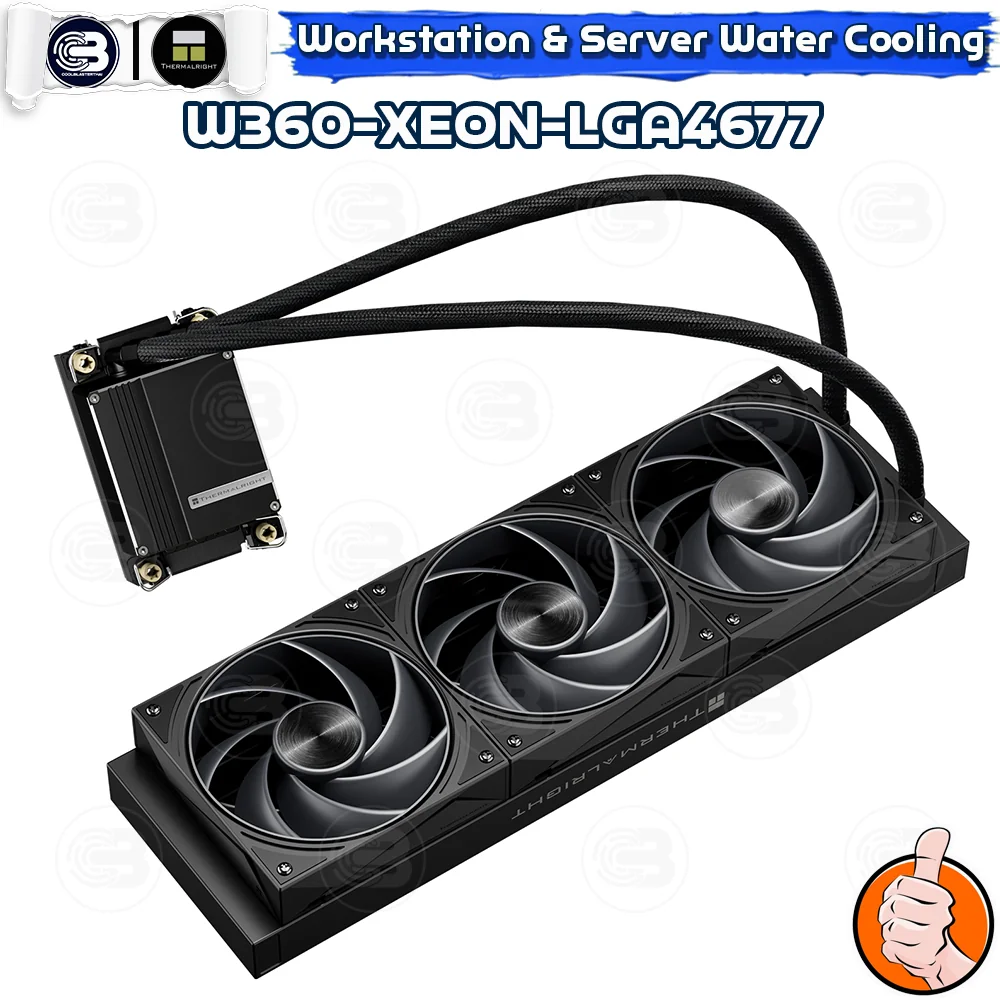

W360-XEON-LGA4677
Server Professional Workstation Series Water Cooling

👍High-quality aluminum alloy: Crafted from premium aluminum alloy, ensuring durability and excellent heat dissipation.

👍Cold plate panel: Features a cold plate panel, a vital component in liquid cooling systems responsible for transferring heat away from the source.

👍Built-in high-performance water pump: Integrates a powerful water pump to circulate coolant effectively and maintain optimal cooling.

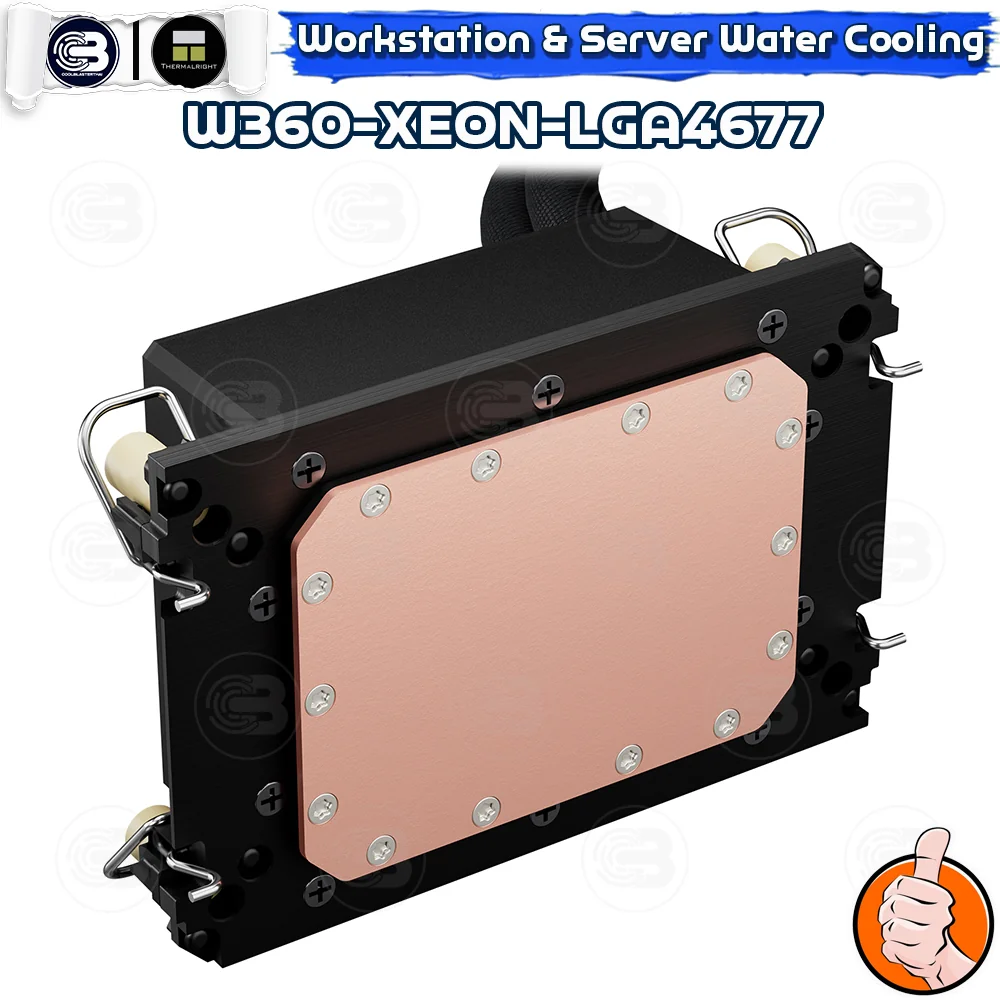

👍Large-area copper base: Utilizes a substantial copper plate at the cooling solution's base, often seen in CPU coolers.

👍Full-coverage CPU design: Designed to fully cover the CPU surface, maximizing heat transfer.
Design aims to maximize contact area between the cooler and CPU, boosting cooling efficiency and stability, especially in high-performance or workstation/server setups.

👍100% coverage of XEON server processors rapidly dissipates heat from multiple cores.

👍Server Processors: Core units built for server system applications.

👍Rapid Multi-Core Heat Dissipation: Highlights the effective cooling capability, especially for multi-core processors that produce considerable heat.

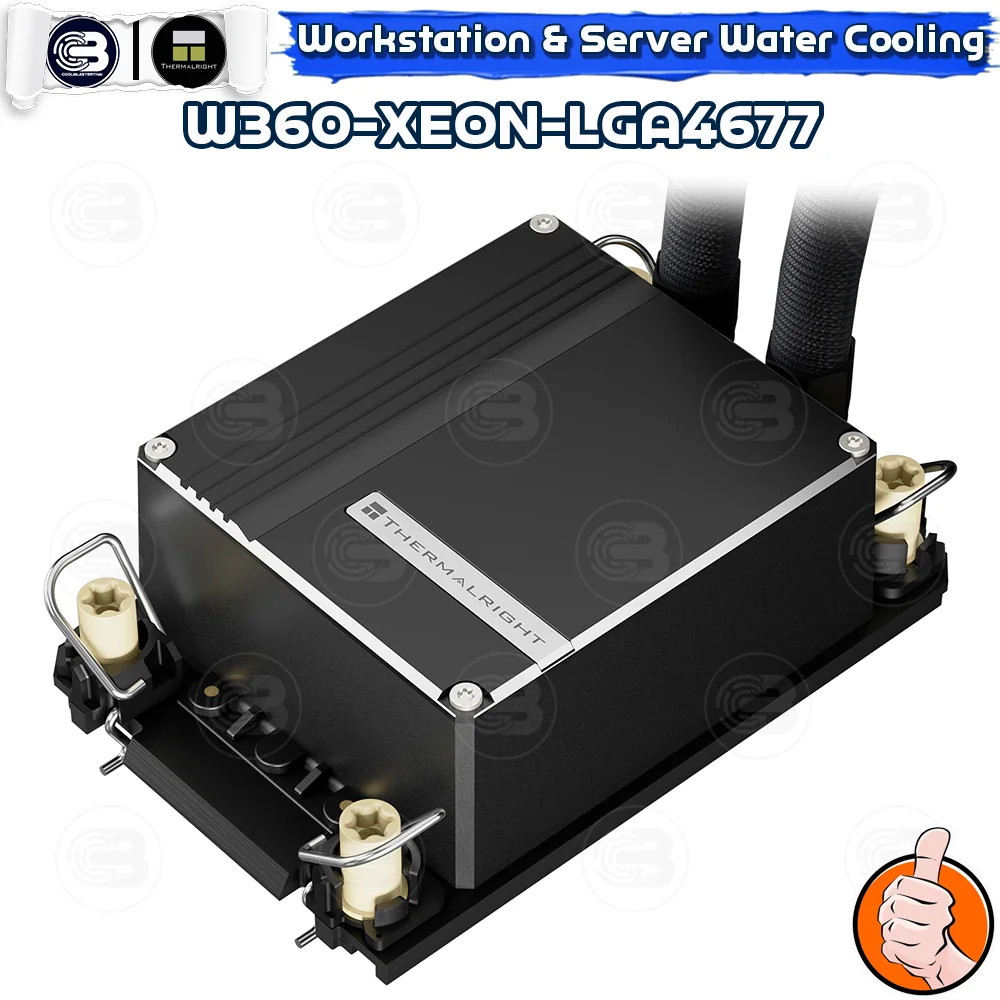

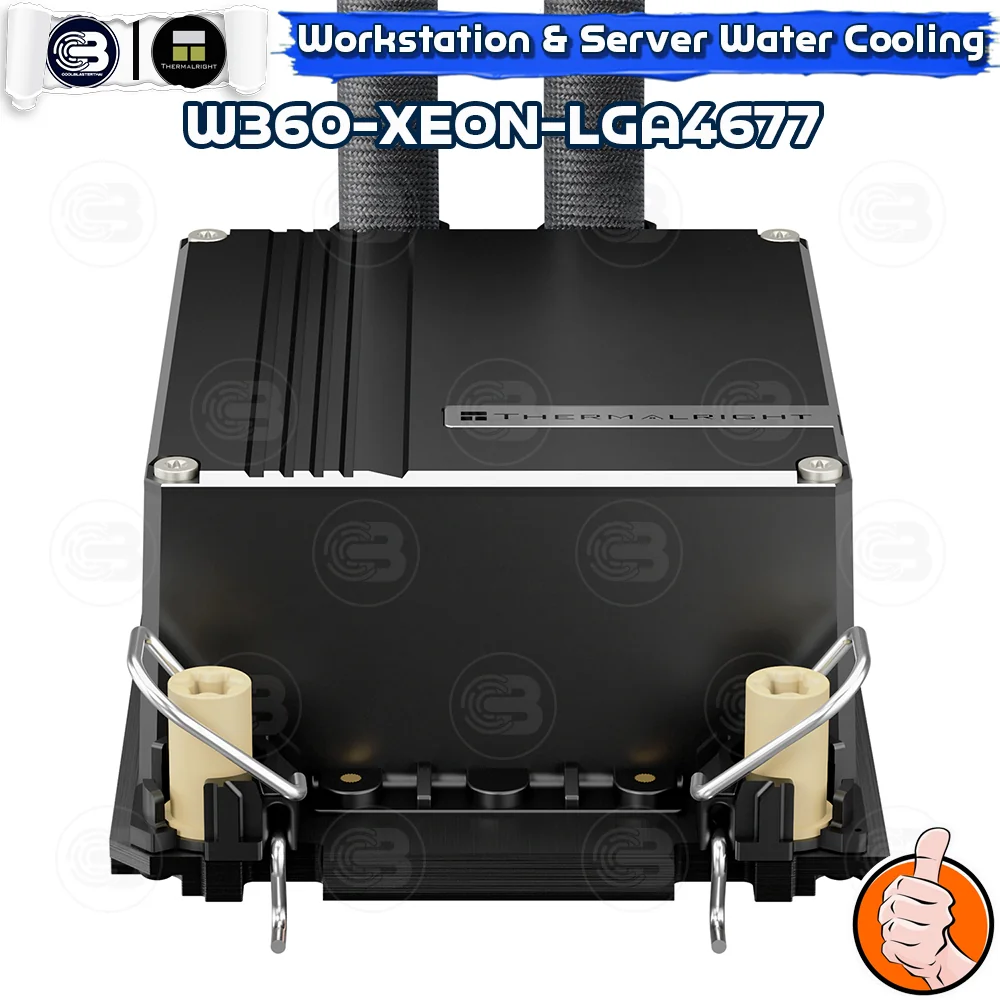

👍Cold head top cover plate: a premium aluminum alloy top cover for the CPU cooler's "cold head," which contacts the CPU to transfer heat. These are commonly used in custom or high-performance systems to boost both looks and cooling performance.

👍CNC precision chamfering of edges: the accurate shaping of beveled edges or corners using CNC machining technology.

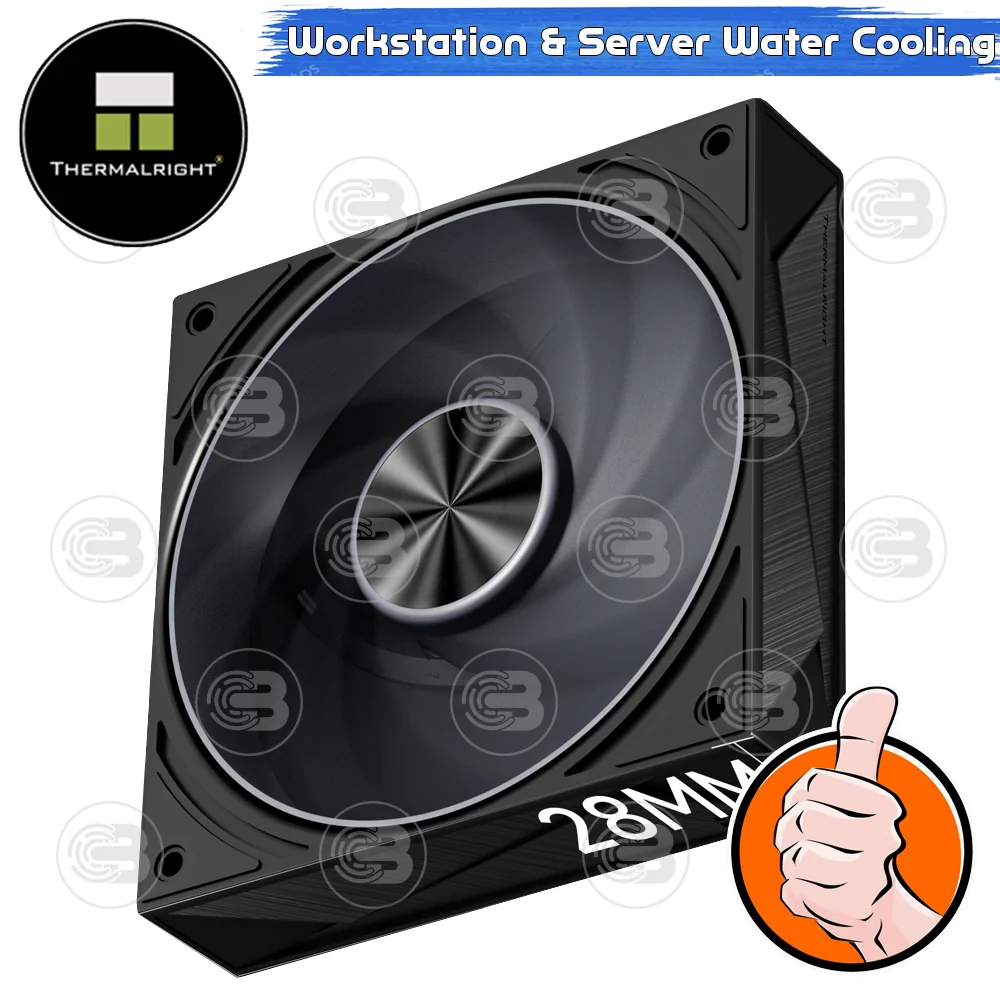

👍Dual ball bearing LCP fan: durable dual ball bearing mechanism and Liquid Crystal Polymer construction.

👍Enhanced 28MM thickness output: delivers improved airflow or static pressure due to its 28mm thickness.

A high-durability fan with specialized features for consistent and efficient operation: It incorporates dual ball bearings, known for their long lifespan and capacity to handle high speeds. The blades are crafted from Liquid Crystal Polymer (LCP), helping to reduce distortion and maintain stability at high rotational speeds. This combination of dual ball bearings and LCP blades ensures dependable performance even during high-speed operation. The fan's design emphasizes durability and smooth functionality, making it suitable for demanding conditions.

This LCP material enables a rigid fan blade design, reducing deformation and vibration at high RPMs, improving airflow and static pressure. Features include up to 3000 RPM, 28mm thickness, efficient cooling for water radiators, high-quality double ball bearings, low axial noise, and an optimized structure for low-speed use.
