👍ร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ (Authorized Dealer)
👍พร้อมส่งทุกรายการ
❤️สินค้าของทางร้านนำเข้าจากผู้ผลิตโดยตรง มั่นใจได้รับสินค้าของแท้ การรับประกันสินค้าทุกรายการเป็นไปตามการรับประกันจากผู้ผลิต
❤️กดติดตามร้านค้าเพื่อรับโปรโมชั่น / ราคาพิเศษ
🚩การจัดส่ง
✅ จัดส่งสินค้าทุกวัน
✅ ร้านจะตัดรอบประมาณ 08:00-09:00 และพยายามจัดส่งรอบเช้าประมาณ 10:00 เพื่อให้ทันรอบ 11.00 เพื่อให้พื้นที่ใกล้เคียงได้รับสินค้าโดยเร็วที่สุด
✅ ร้านจัดส่งทุกวันจันทร์-เสาร์ หยุดจัดส่งวันอาทิตย์และวันหยุดนักขัดฤกษ์
✅ กรณีลูกค้าในเขตกรุงเทพฯ และปริมณฑล รีบใช้งานด่วน สามารถจัดส่งด้วย Rider ได้รับสินค้าภายใน 1-3 ชั่วโมง โดยค่าบริการเก็บที่ปลายทาง รบกวนแจ้งทางทางข้อความทางร้านก่อนครับ
🚩การรับประกัน
✅ สินค้าชิ้นนี้มีการรับประกันจากผู้ผลิต 3 ปี
✅ การรับประกันสินค้าจากความผิดพลาดของการผลิต อาทิ การทำงานไม่ปกติหรือการมีเสียงดังแปลกไปจากการใช้งาน
✅ การรับประกันไม่ครอบคลุมเรื่องการแตกหัก บิ่น ไหม้ จากความผิดพลาดของผู้ใช้งานหรือมีการดัดแปลง
✅ สิ่งสำคัญคือ VOID ไม่ขาด/ชำรุดหรือสูญหาย เนื่องจากจะถือเป็นการขาดประกันทันที
✅ กรณีมีสินค้าในสต๊อก ทางร้านจะรีบส่งกลับไปใน 3-5 วันทำการ
✅ กรณีจำเป็นเพื่อส่งเคลมผู้ผลิตเนื่องจากสินค้าไม่มีในสต๊อกหรือหยุดผลิต จะแจ้งรายละเอียดเรื่องระยะเวลาในการเคลมหรือการเปลี่ยนรุ่นใกล้เคียงให้ผู้ซื้อทราบเพื่อหาทางออกให้ผู้ซื้อได้ประโยชน์สูงที่สุดต่อไป
🚩สอบถามรายละเอียดสินค้า/ปรึกษาปัญหาการใช้งาน/ขั้นตอนการส่งเคลม
✅ ผ่านช่องทางข้อความถึงทางร้าน
✅ แจ้งอาการหรือถ่ายรูปลักษณะปัญหา เพื่อแก้ปัญหาเบื้องต้น ถ้าไม่สามารถแก้ไขได้ให้ส่งสินค้ามาเคลม
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Model:

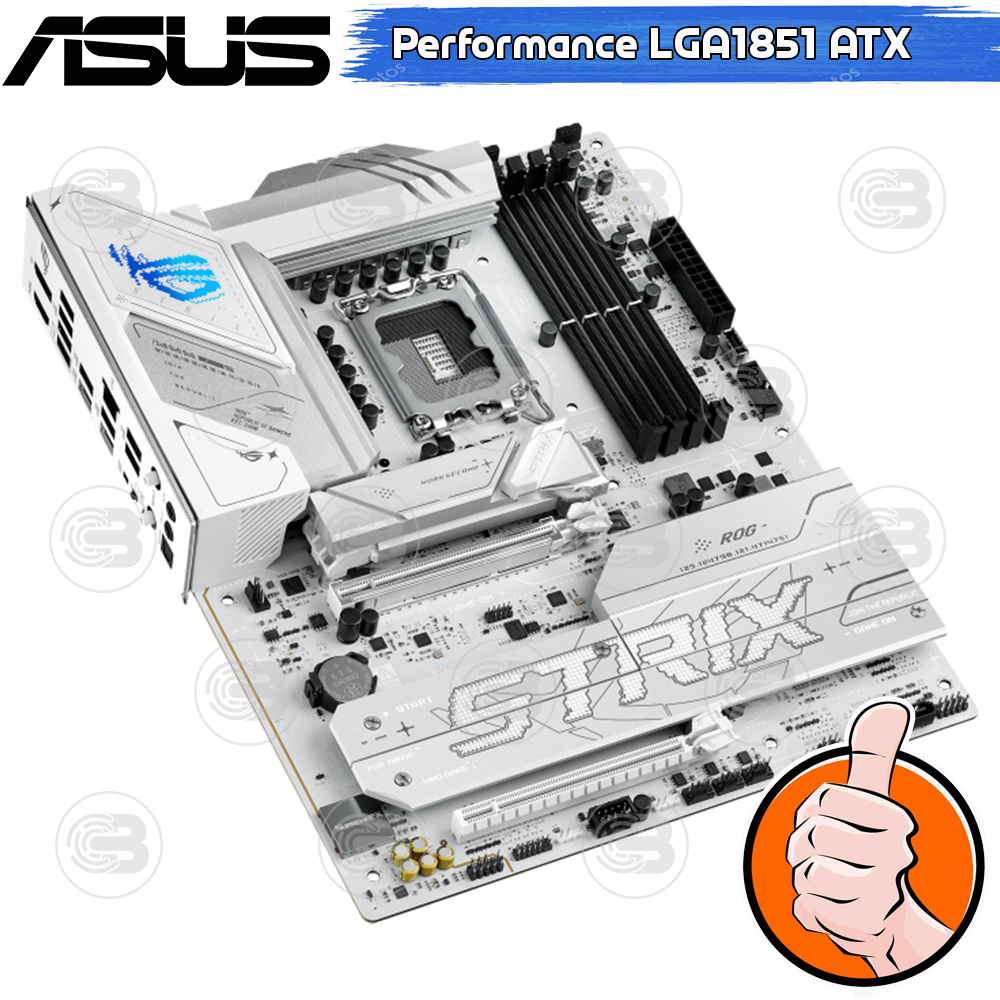

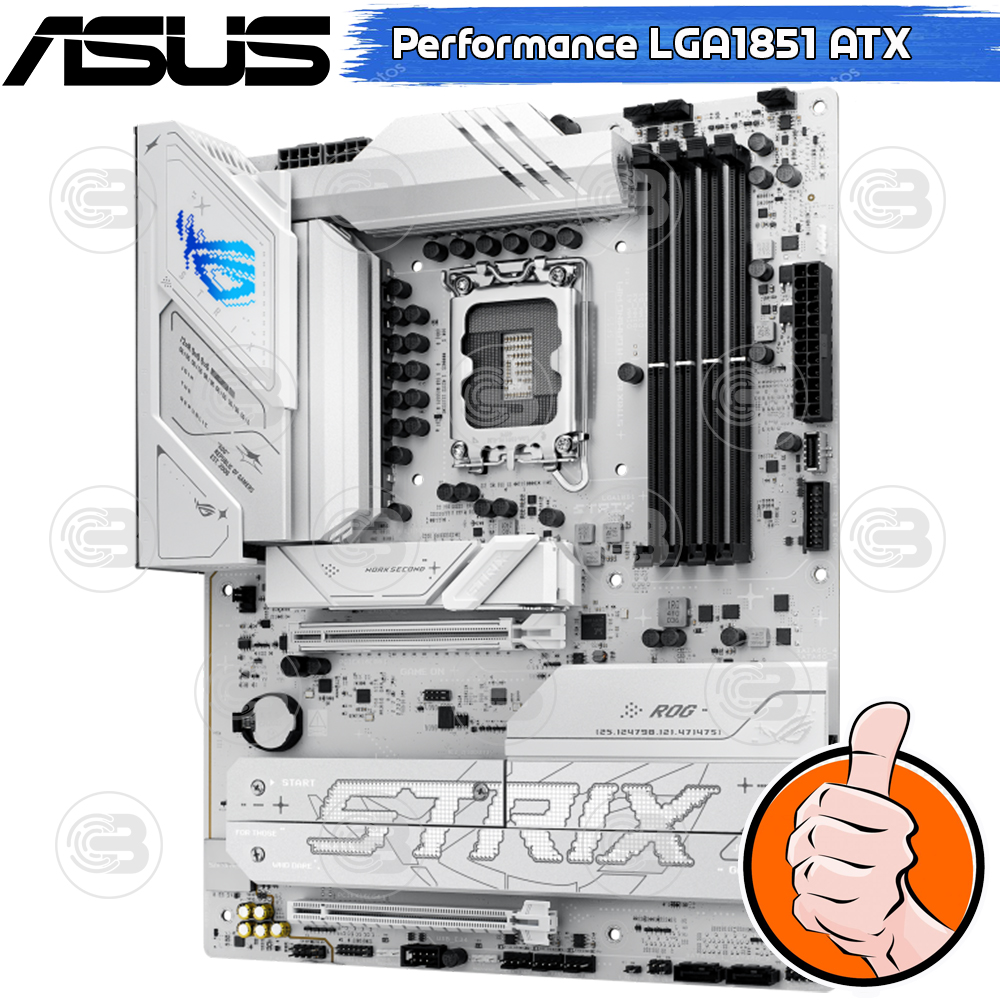

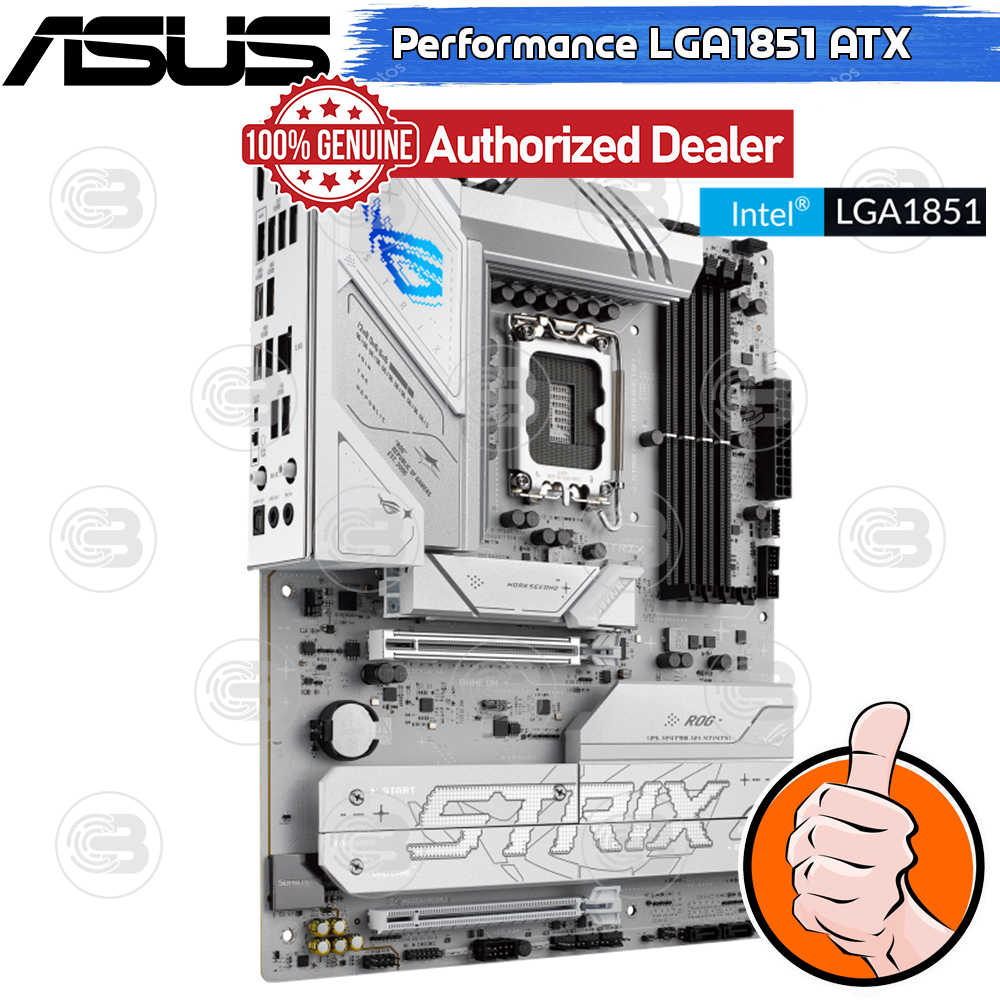

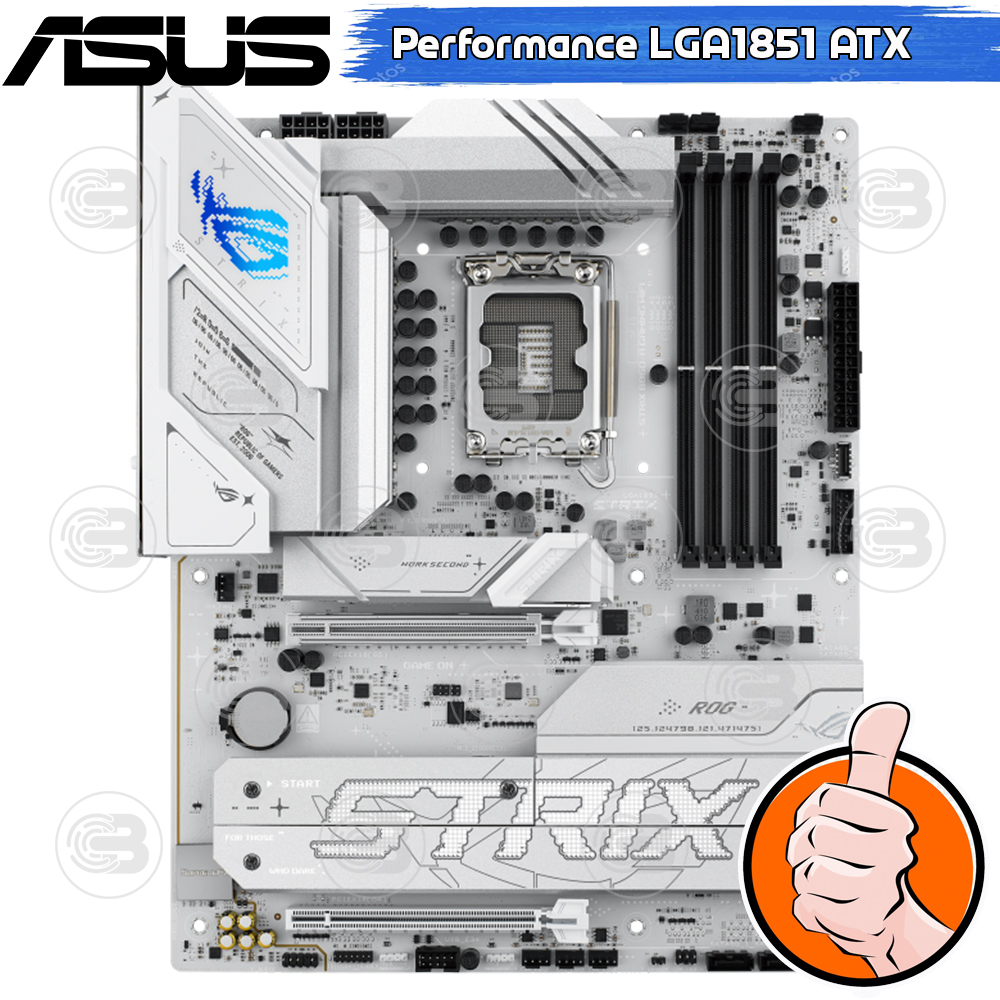

ROG STRIX B860-A GAMING WIFI
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
CPU:
Support Intel Core Ultra Processors (Series 2) ,LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Chipset:
Intel B860
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Memory:
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8600+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Graphics:
1 x DisplayPort
1 x HDMI port
1 x USB4 (20Gbps) ports support USB
Type-C display outputs
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Expansion Slots:
Inte CoreTM Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Storage:
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280
Intel B860 Chipset
M.2_2 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110
(supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports
PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Ethernet:
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Wireless & Bluetooth:
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Bluetooth v5.4
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
USB:
Rear USB (Total 10 ports)
1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Audio:
Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz
playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

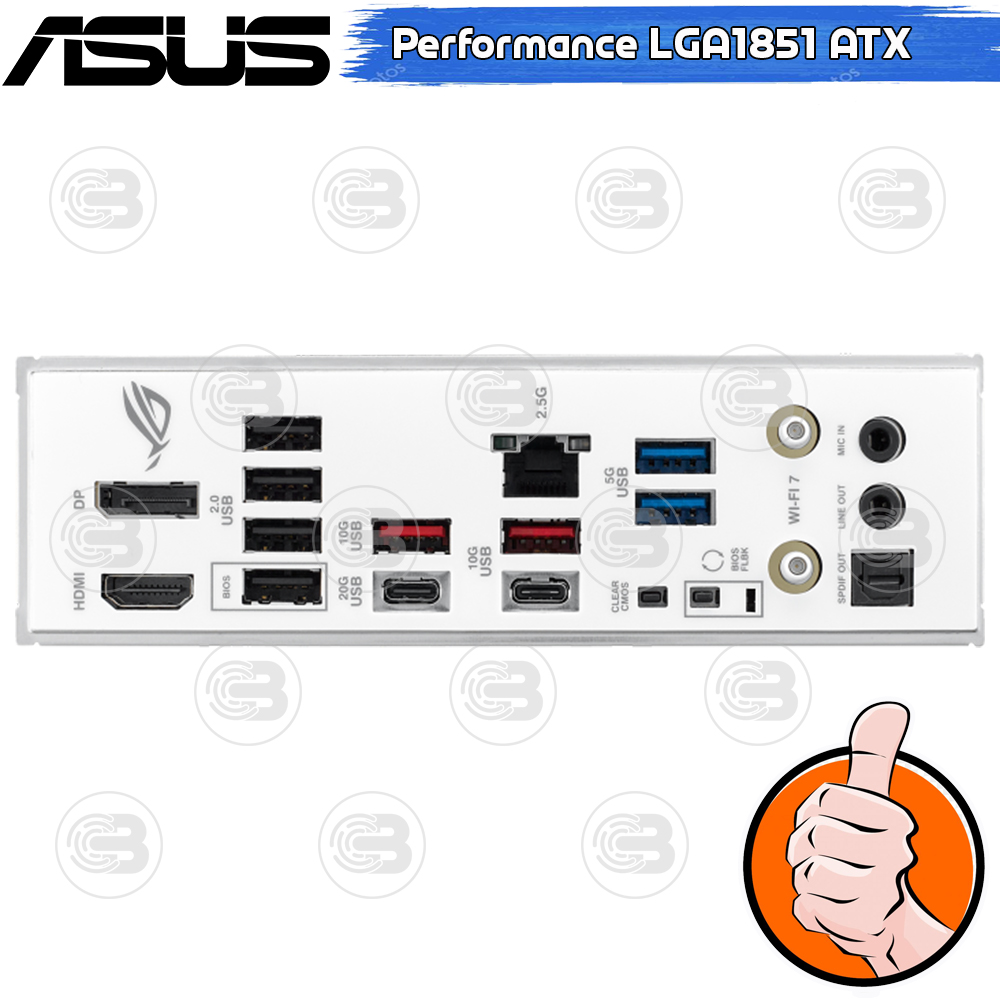

Back Panel I/O Ports:
1 x USB4 (20Gbps) port (1 x USB Type-C)
3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Internal I/O Connectors:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 header(s)
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
