👍ร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ (Authorized Dealer)
👍พร้อมส่งทุกรายการ
❤️สินค้าของทางร้านนำเข้าจากผู้ผลิตโดยตรง มั่นใจได้รับสินค้าของแท้ การรับประกันสินค้าทุกรายการเป็นไปตามการรับประกันจากผู้ผลิต
❤️กดติดตามร้านค้าเพื่อรับโปรโมชั่น / ราคาพิเศษ
🚩การจัดส่ง
✅ จัดส่งสินค้าทุกวัน
✅ ร้านจะตัดรอบประมาณ 08:00-09:00 และพยายามจัดส่งรอบเช้าประมาณ 10:00 เพื่อให้ทันรอบ 11.00 เพื่อให้พื้นที่ใกล้เคียงได้รับสินค้าโดยเร็วที่สุด
✅ ร้านจัดส่งทุกวันจันทร์-เสาร์ หยุดจัดส่งวันอาทิตย์และวันหยุดนักขัดฤกษ์
✅ กรณีลูกค้าในเขตกรุงเทพฯ และปริมณฑล รีบใช้งานด่วน สามารถจัดส่งด้วย Rider ได้รับสินค้าภายใน 1-3 ชั่วโมง โดยค่าบริการเก็บที่ปลายทาง รบกวนแจ้งทางทางข้อความทางร้านก่อนครับ
🚩การรับประกัน
✅ สินค้าชิ้นนี้มีการรับประกันจากผู้ผลิต 3 ปี
✅ การรับประกันสินค้าจากความผิดพลาดของการผลิต อาทิ การทำงานไม่ปกติหรือการมีเสียงดังแปลกไปจากการใช้งาน
✅ การรับประกันไม่ครอบคลุมเรื่องการแตกหัก บิ่น ไหม้ จากความผิดพลาดของผู้ใช้งานหรือมีการดัดแปลง
✅ สิ่งสำคัญคือ VOID ไม่ขาด/ชำรุดหรือสูญหาย เนื่องจากจะถือเป็นการขาดประกันทันที
✅ กรณีมีสินค้าในสต๊อก ทางร้านจะรีบส่งกลับไปใน 3-5 วันทำการ
✅ กรณีจำเป็นเพื่อส่งเคลมผู้ผลิตเนื่องจากสินค้าไม่มีในสต๊อกหรือหยุดผลิต จะแจ้งรายละเอียดเรื่องระยะเวลาในการเคลมหรือการเปลี่ยนรุ่นใกล้เคียงให้ผู้ซื้อทราบเพื่อหาทางออกให้ผู้ซื้อได้ประโยชน์สูงที่สุดต่อไป
🚩สอบถามรายละเอียดสินค้า/ปรึกษาปัญหาการใช้งาน/ขั้นตอนการส่งเคลม
✅ ผ่านช่องทางข้อความถึงทางร้าน
✅ แจ้งอาการหรือถ่ายรูปลักษณะปัญหา เพื่อแก้ปัญหาเบื้องต้น ถ้าไม่สามารถแก้ไขได้ให้ส่งสินค้ามาเคลม
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

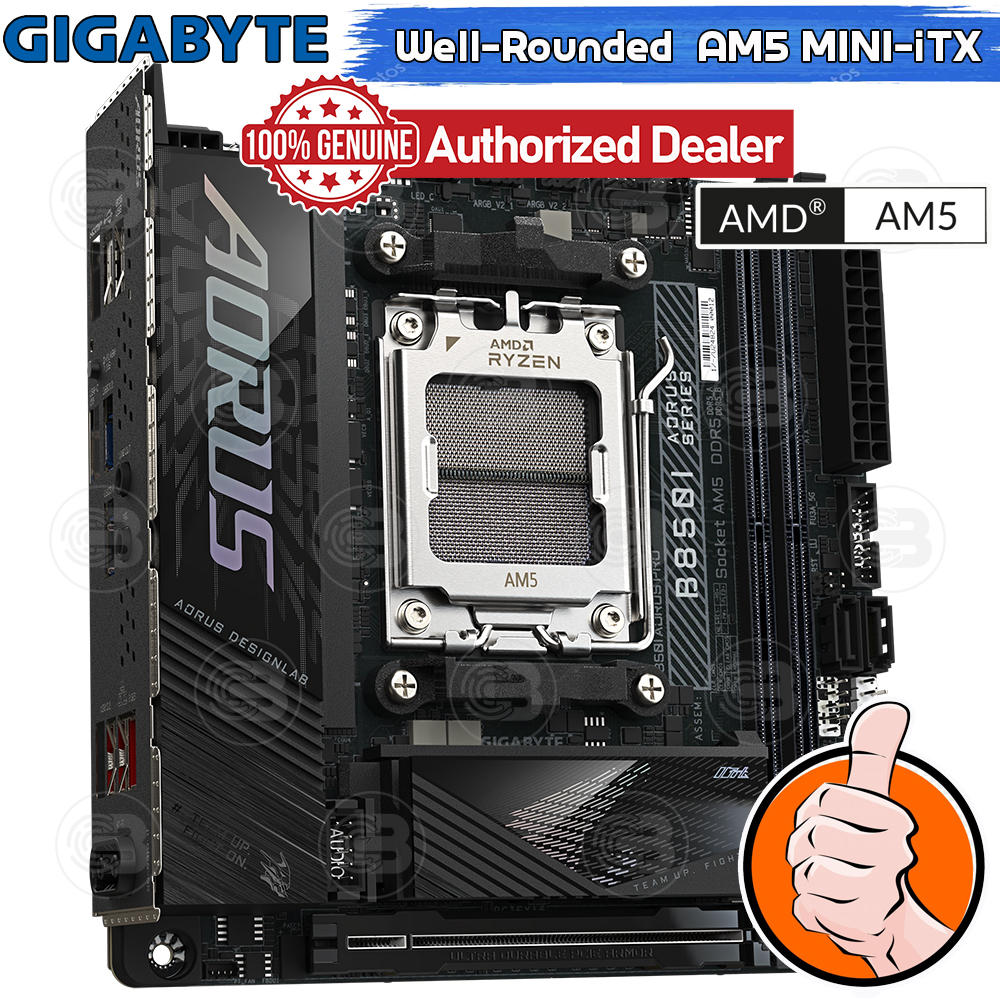

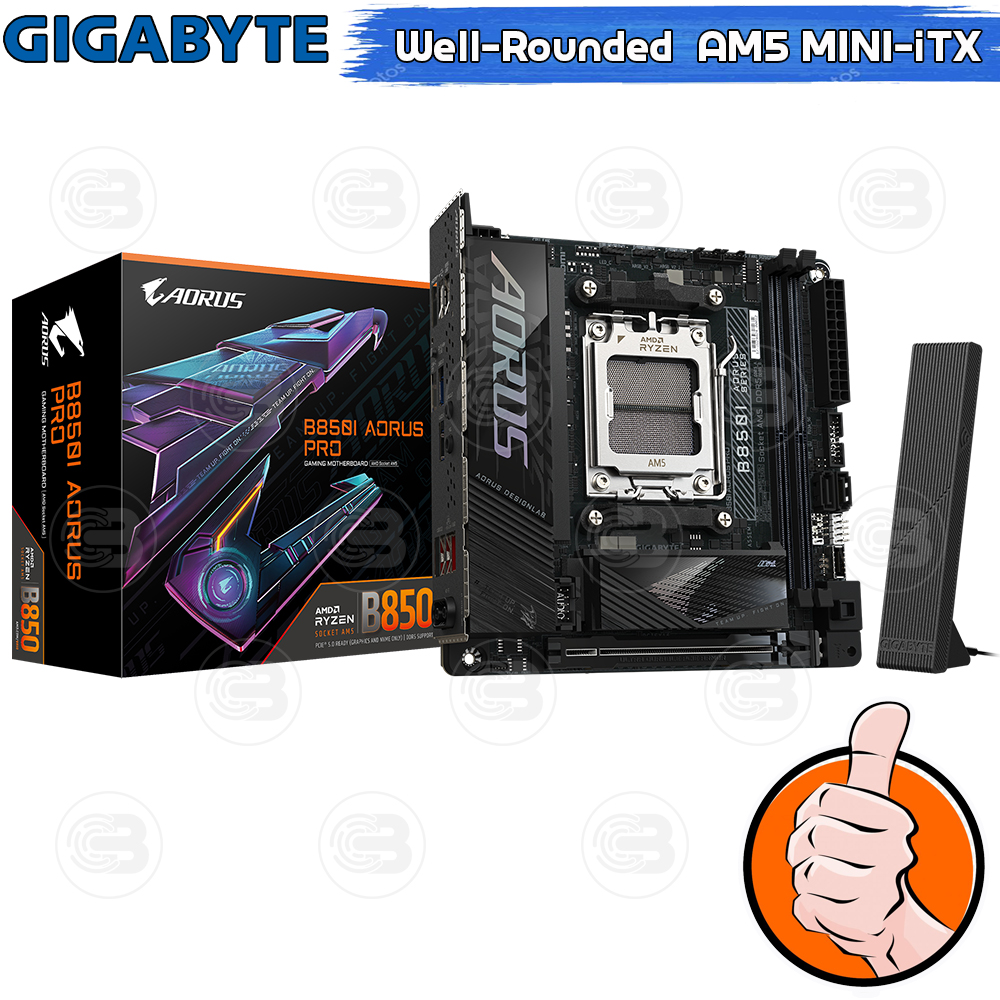

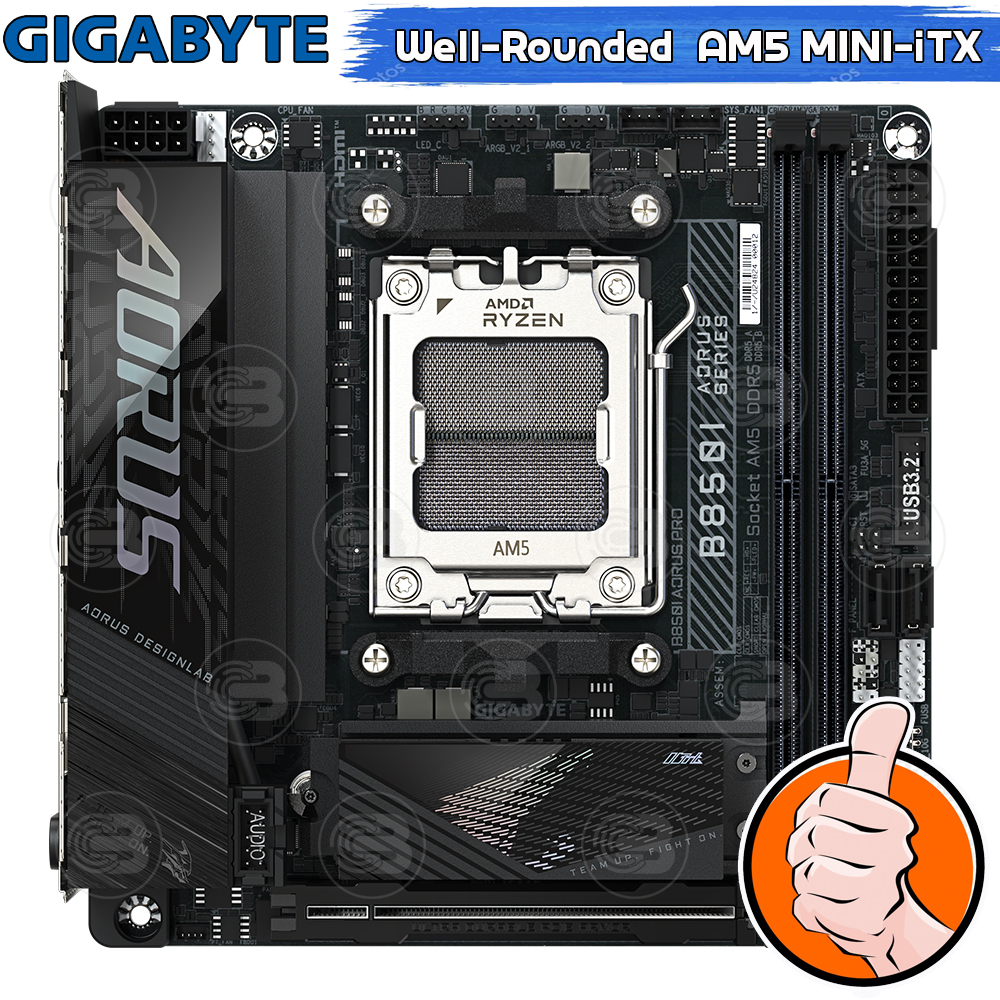

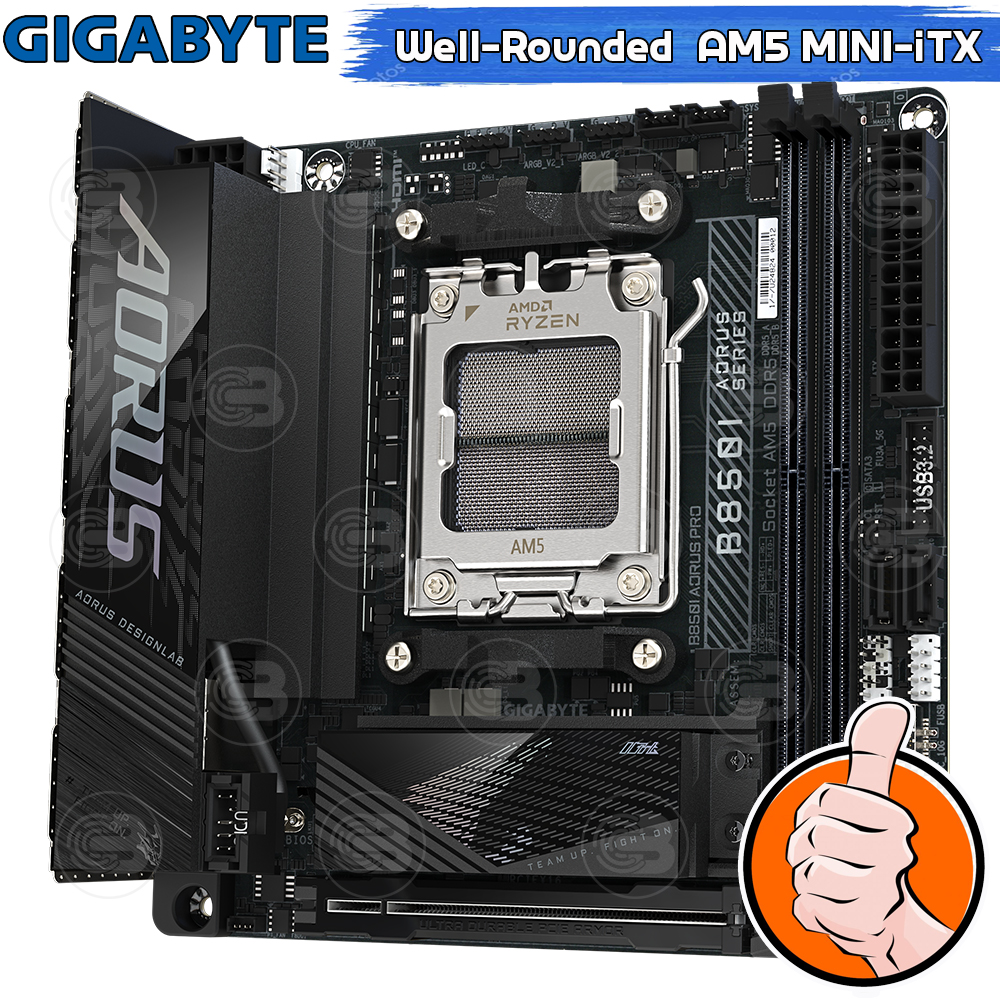

Model:
B850I AORUS PRO (rev. 1.1)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Processor:
AMD Socket AM5:
AMD Ryzen 9000/8000/7000 Series Processors
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Chipset:
AMD B850
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Memory:
Support for DDR5 8800(OC)/ 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Onboard Graphics:
Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port (max. 4096x2160@60 Hz)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Audio:
Realtek ALC4080 CODEC
High Definition Audio
2-channel
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
LAN:
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

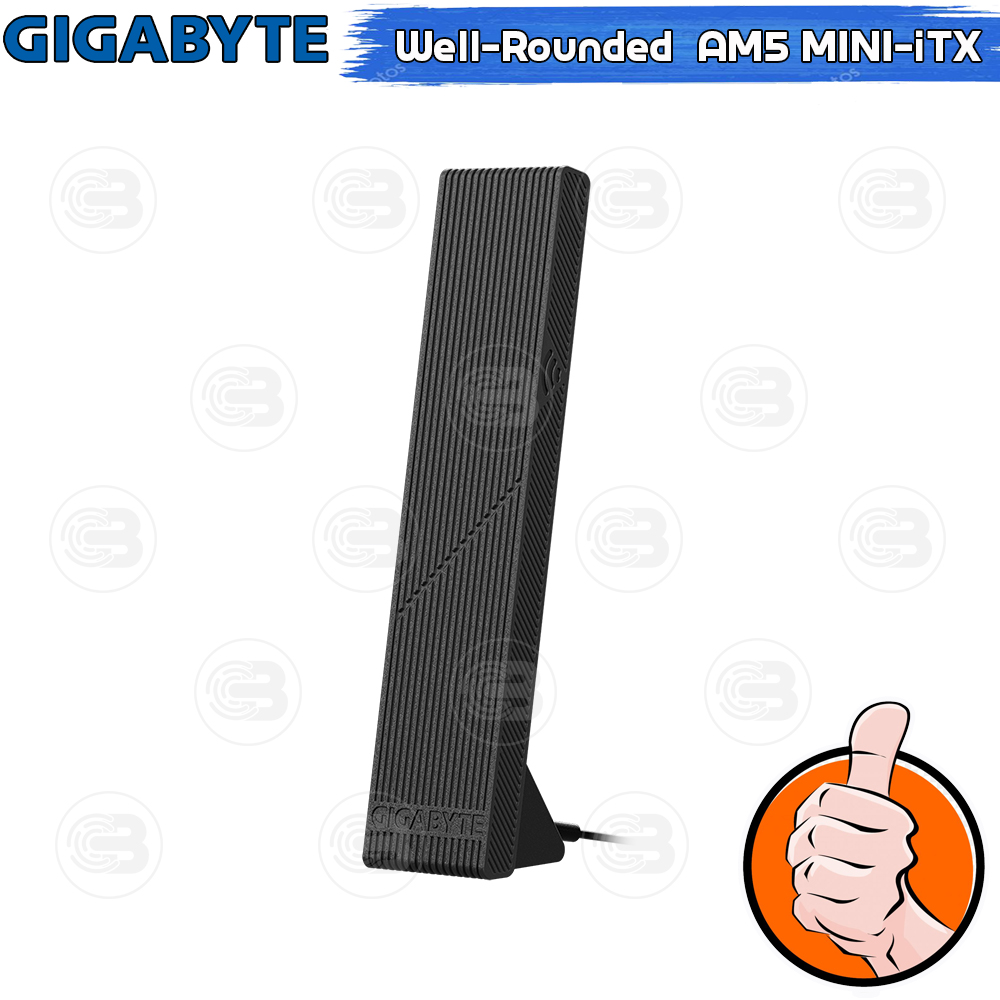

Wireless Communication module:
Realtek Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Expansion Slots:
1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 9000/7000 support PCIe 5.0 x16 mode
AMD Ryzen 8000 Phoenix 1 supports PCIe 4.0 x8 mode
AMD Ryzen 8000 Phoenix 2 supports PCIe 4.0 x4 mode
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
IDE ATA:
1 x M.2 connector (M2A_CPU), integrated in the CPU, M key, type 2280 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, M key, type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
USB:
CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬

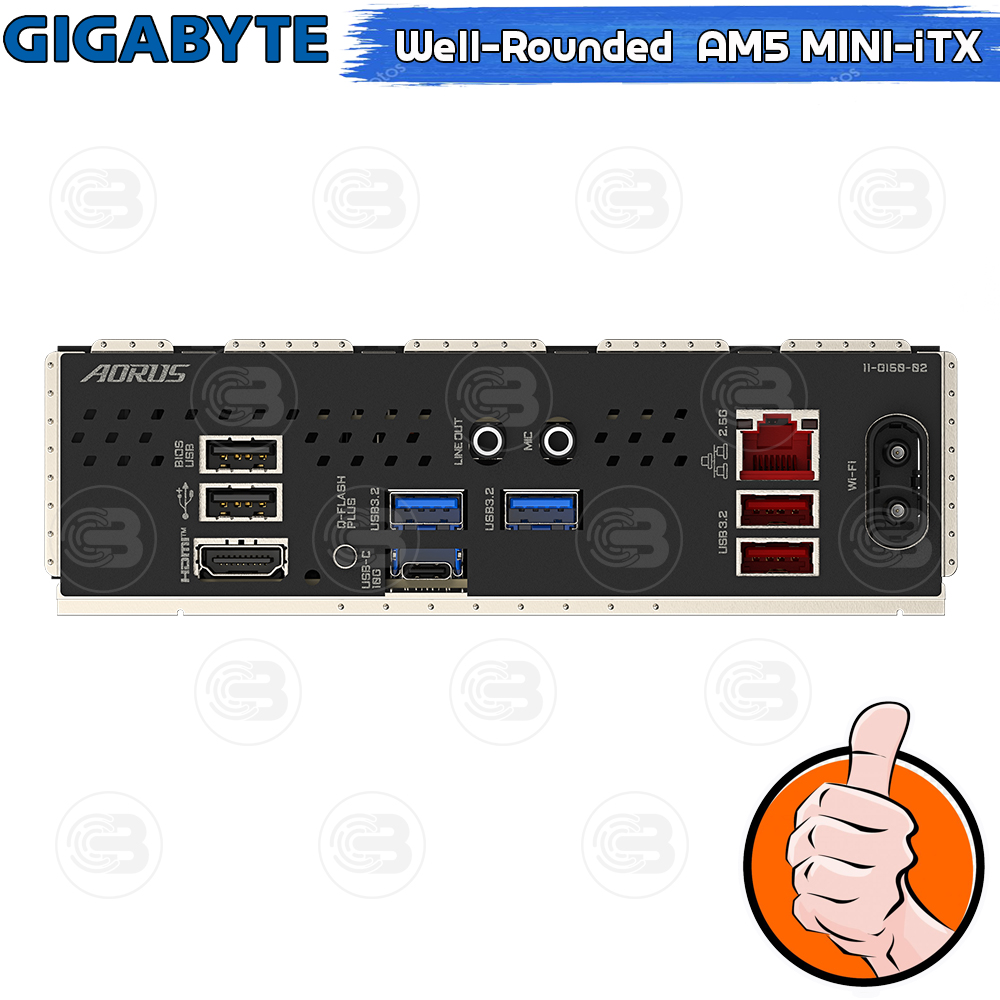

Rear Panel I/O:
1 x Q-Flash Plus button
1 x HDMI port*
2 x antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
I/O:
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Operating System:
Support for Windows 11 64-bit
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
Form Factor:
Mini-ITX Form Factor; 17.0cm x 17.0cm
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
